Fabricated with heavy-gauge AISI SS 304/316 food-grade stainless steel, engineered for 24/7 continuous hygienic operation, high thermal efficiency, and minimal dairy maintenance.
Ghee storage & Settling tanks are used by dairy plants to safely store melted ghee.Ghee storage tank is specialized containers designed for storing & Settling ghee, a clarified butter commonly used in cooking. These tanks play a crucial role in the dairy industry’s ghee production process.
| Purpose | -Ghee storage tank is utilized for storing and settling ghee. |
| Construction | -These tanks are likely constructed with Materials include SS316, SS304, and SS316L stainless steelto maintain the quality and purity of the stored ghee. |
| Size & Capacity | -Ghee storage tanks are Available in various sizes and capacitiessuch as 500-5000-liter, catering to the diverse production needs of dairy facilities. |
| Cooling & Maturing | -Some tanks are also facilitate cooling Facility, contributing to the maturation process of the ghee. |
| Industry Application | -Industries such as dairy processing and ghee manufacturing extensively use these specialized storage Tanks. |
| Feature 1 | Ghee Storage Tanks are widely used in different food processing industries for storing Ghee. These Ghee Storage Tanks are fabricated under the stringent supervision of our workforce. High-tech machinery is used at the time of making these Ghee Storage Tanks |
| Capacity Range | Vertical Ghee storage tanks comes in varying capacities, such as 500 liters, to 5,000 Liters catering to the diverse needs of dairy farms and processing units. |
| Gross capacity | 10% Extra for Rated Capacity |
| Construction of Tank | AISI SS 304, AISI SS 316 & AISI SS 316L |
| Tank Orientation | Vertical Type &Commonly Open &closed type in Shape of Round. |
| Design | These tanks are having Double or Triple Jacket. for Steam or Hot Water Circulation to Maintain Ghee Temperature. |
| Inner Body | AISI SS 316 |
| Outer Body | AISI 304 |
| Milk measuring facility | Sand Blasted Level Marking every 500 L Intervals |

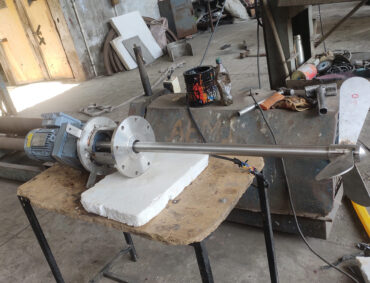

| Agitators | Heavy Duty Top Mounted Gear Motor with Single Piece Solid SS Rod with Sweeping Types Agitator for Proper Mixing Ghee. |
| Type of Insulation | Light Raising Bond. LRB – 50-125 mm Thk |
| CIP Facility | High Speed Rotary Spray Ball for Inside Complete Cleaning |
| Manway& Cover | Locking Type ManwayTop Mounted with food Grade Silicone Gasket& Some Tanks are Comes in Two Side Openable Covers |
| Chilled Water Inlet Header | Jacketed also Having a Chilled Water Flow Header to Maintain Temperature of Ghee. |
| Condensate Out for Steam | A Float Type Steam Trap System for Automatic Drain Steam Condensate in jackets. |
| Ball Fit | Adjustable 50 mm Height Solid Ball Fit to Leveling the Tank |
| Ladder | Heavy Duty Ladder made from Steel Pipes & Plates to approaching Top of Tanks |
| Air vent | an Air vent top Mounted to Prevent Vacuums Generation During Milk Pump Milk Out Process& Release Moisture in Tanks |
| Temperature Sensor | STD Thermowell PT 100with ½” BSP Coupling SS 304 |
| Inlet | No Foam Inlet with Expandable Union |
| Light / Sight Glass | Light Glass with LED Bulb & Sight Glass for Check Milk Level Marking |
| Lifting Lugs | Heavy SS 304 Cladded Lifting Lugs to Liftin Silos. |
| Bottom Drain Outlet | SS 304 Two Way Plug Valve to Drain Complete Ghee. |
| Side Outlet | SS 304 Two Way Angle Valve with Flow Control System to Take Fresh Ghee During Process. |
| Automation | Imported High Priscian Level Sensors &Pressor Level Transmitter Sensorsfor Exact Value of Ghee Quantity and Transit direct to the Display in Control Panel in Plants & Office Area. |
| Sampling Cock | 1” Inch Sampling Cock to Take Sample of Milk to Examine in Laboratory |
| Hot Water & Steam Inlet Connection | in Jacketed Tanks Flange Type Seamless Hot & St |
Authoritative technical answers regarding capacity sizing, food-grade sanitary construction, Clean-In-Place (CIP) cleaning, and dairy plant integration from Aviva Equipments engineers.
A specialized ghee storage tank and settling tank provides temperature-controlled storage and natural sedimentation for molten ghee following clarification. It maintains the ideal crystallization temperature to ensure traditional grainy ('danedar') texture while protecting delicate fats from moisture and rancidity.
Aviva Equipments manufactures vertical and horizontal ghee storage tanks in capacities ranging from 500 Litres to 10,000 Litres. Every tank features 10% extra gross volumetric capacity and can be configured with double or triple steam/hot water circulation jackets.
As leading dairy processing equipment manufacturers in india, we fabricate the inner tank shell from premium AISI SS 316 and the outer cladded shell from AISI SS 304. SS 316 provides superior corrosion resistance against free fatty acids in hot ghee, while the sanitary mirror polish ensures effortless residue drainage.
Our tanks feature high-density LRB / PUF insulation (50mm to 125mm thickness) combined with dimple or spiral jackets for hot water or low-pressure steam circulation. A float-type steam trap automatically drains condensate, maintaining a constant batch temperature of 45°C to 50°C.
Each tank is fitted with dual high-speed rotary CIP spray balls that provide 360-degree impingement cleaning. Combined with our conical sloped bottom and two-way sanitary plug valves, tanks drain 100% clean without manual scraping or residual fat accumulation.
Consult with Aviva Equipments engineering team for custom capacity sizing, P&ID layout drawings, and factory-direct pricing tailored to your plant.
