Fabricated with heavy-gauge AISI SS 304/316 food-grade stainless steel, engineered for 24/7 continuous hygienic operation, high thermal efficiency, and minimal dairy maintenance.

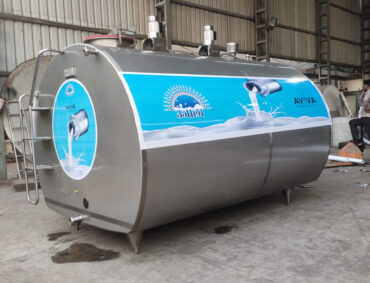

A Bulk Milk Cooler (BMC) is a large storage tank used by dairy Industries toChilling RawMilk. It’s a Main Part of dairy Industry& Dairy Products Process Plants, These Tanks usually made from stainless steel, and is cleaned by CIP after Complete each milk collection. Aviva’s Bulk Milk Cooler 3000 Ltr have an enclosed design with an automatic cooling control unit and a Compact Control Panel with digital display to Easily Operate Complete BMCU System. The tank Having a 100 mm Thickness Polyurethane foam Insulation (Density 40 Kg)Injected by Machine. To Maintain Chilled Milk at Temp 4°CAEPL 3KL BMC Deigned by Special Construction, which allows them to Chilled milk 20 times faster. BMC have a 01 Nos Agitator with the RPM30- 32, to ensures the milk is the same temperature throughout the Day and prevents warm milk in the middle.
| Temperature control | Digital temperature controller, advanced digital Technology to Control & Maintain temperature |
| Cooling | Faster cooling due to direct expansion, energy efficient condensing unit |
| Tank | Durable, AISI-304 S.S. Tanks with insulation |
| Maintenance | User-friendly, low maintenance |
| Electricity | Reduced electricity consumption |
| Protection | Inbuilt anti-freezing protection system |
| Microprocessor | Maintains temperature |
| Agitator | Continuously rotates milk to maintain a uniform state |
| Feature 1 | Min Capacity of Milk Chilling Design – Special Design Omega Pillow Plates to Chill Milk Min 100 Liter Capacity Only by Operate one Condensing Unit at a Time |
| Rated capacity | 3000 liters |
| Gross capacity | 3300 liters |
| Construction of Tank | AISI SS 304 |
| Tank Orientation | completely closed type in Shape of Elliptical & Horizontal |
| Tank Evaporator | Omega Make Laser welded with Operating pressure of 30 bars and crash test pressure of 60 bars. |
| Inner thickness | 2 mm AISI SS 304 |
| Outer thickness | 1.5 mm AISI 304 |
| Milk measuring facility | Inside Wall Mounted Dip stick &Calibration accuracy- 0.5%. Laminated & Framed calibration chart. |
| Agitators | 01 Nos to Maintain Milk Temp & Compliance ensuring even distribution of the milk fat. |
| Type of Insulation | 100 mm thkInjected, CFC Free PUF 40kg/Cu. m. with the 0.019 Wm/k |
| CIP Facility | Rotary Spray Ball 02 Nos for Inside Complete Cleaning |
| Voltage range | Input Volts: 300 to 550 for 3-phase BMC Out Put Volts: 415 |
| Manway | Locking Type Manway Top Mounted |
| Ball Fit | Adjustable 50 mm Height Solid Ball Fit to Leveling the Tank |
| Ladder | Front Side Heavy Duty Ladder made from Pipes & Plates to approaching manway |
| Air vent | an Air vent top Mounted to Prevent Vacuums Generation During Milk Pump Milk Out Process |
| Temperature Sensor | Sub Zero |
| Inlet | No Foam Inlet |
| Pipe Line & Accessories | SS 304 Dairy Standard Union, NRV, 3 Way Valves etc. to Smooth Milk Loading Unloading Process in BMC. |
| Servo Stabilizer | - 20 KVA – 3 Phase |
| D.G Set Require | 20 KVA (Optional on Demand)– 3 Phase |
Standard Applicable Cooling Time – First milking cycle (appx 50% to 60% of rated capacity of BMC tank) Cooling in less than 3 hours from 35C to 4°C- Second milking cycle (appx. 40% to 50% of rated capacity of BMC tank) cooling in 1hour 30 minutes (average temp 19.5 C to4°C)
Authoritative technical answers regarding capacity sizing, food-grade sanitary construction, Clean-In-Place (CIP) cleaning, and dairy plant integration from Aviva Equipments engineers.
The bulk milk cooler 3000 ltr is the sweet spot for primary village milk cooperative societies collecting milk twice daily. Its horizontal closed elliptical design holds 3,300L gross capacity, preventing environmental dust ingress while chilling milk efficiently.
Aviva equips the 3KL BMC with dual independent condensing circuits. For morning milk reception (50% capacity), a single condensing unit operates economically; during peak flush milk reception, both units run simultaneously for rapid chilling.
Each tank includes an inside wall-mounted SS dipstick with 0.5% calibration accuracy, a framed calibration chart, a Sub-Zero digital temperature display, and a sanitary 51mm SMS outlet with butterfly valve.
Our 30–32 RPM geared motor agitator uses custom-pitched sanitary blades engineered through computational fluid dynamics to gently blend milk fat from top to bottom without creating shear forces that break fat globules.
Aviva is an ISO 9001:2008 certified bulk milk cooler manufacturer in india with thousands of BMC installations across Gujarat, Maharashtra, Rajasthan, Punjab, and export markets in East Africa.
Consult with Aviva Equipments engineering team for custom capacity sizing, P&ID layout drawings, and factory-direct pricing tailored to your plant.
