Fabricated with heavy-gauge AISI SS 304/316 food-grade stainless steel, engineered for 24/7 continuous hygienic operation, high thermal efficiency, and minimal dairy maintenance.

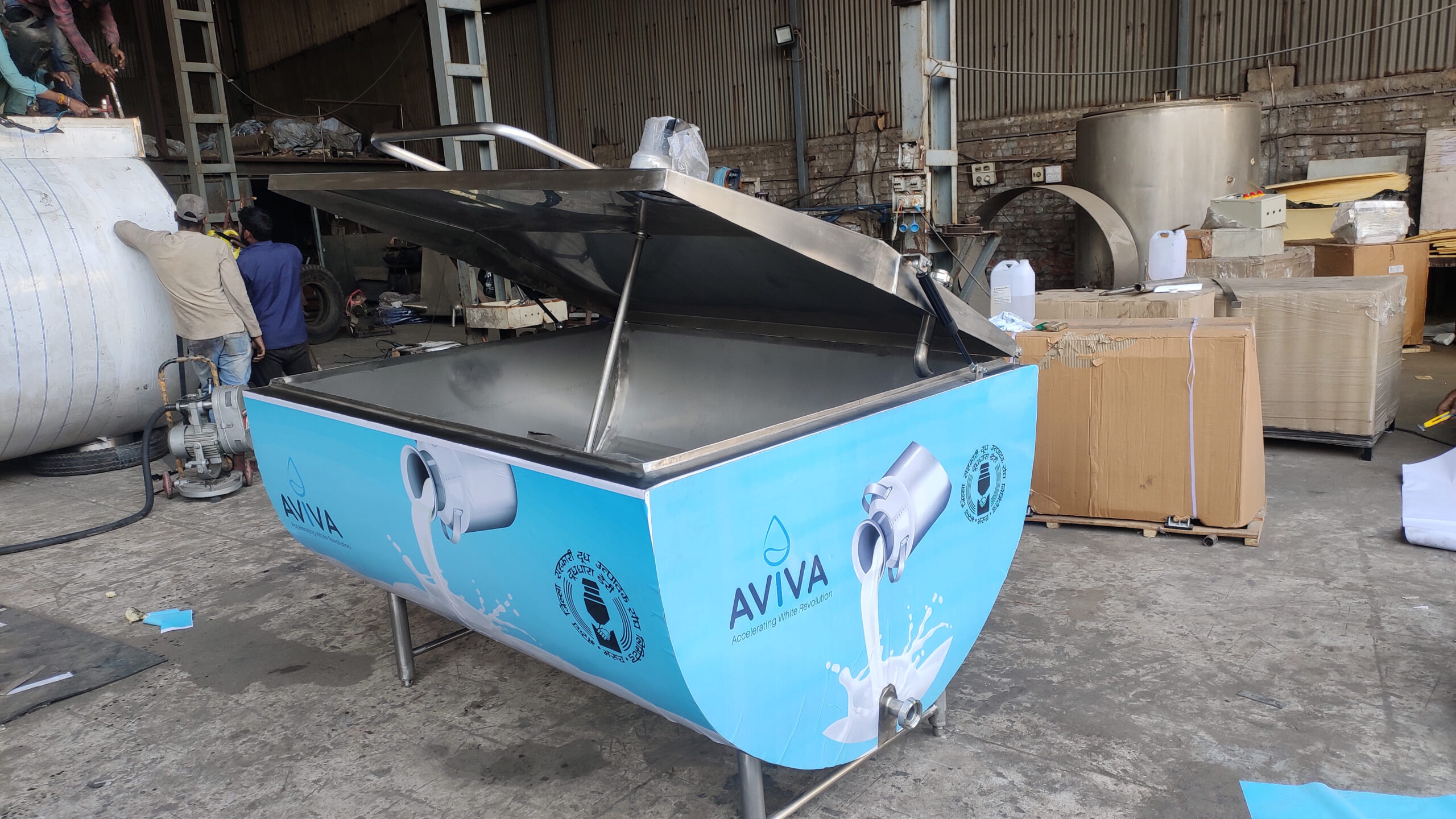

A Bulk Milk Cooler (BMC) is a large storage tank used by dairy Industries toChilling RawMilk. It’s a Main Part of dairy Industry& Dairy Products Process Plants, These Tanks usually made from stainless steel, and is cleaned by CIP after Complete each milk collection. AEPL Bulk Milk Cooler 1000 Ltr available in Open Type Design with Vertical Round & Horizontal D Type with an automatic cooling control unit and a Compact Control Panel with digital display to Easily Operate Complete BMCU System. The tank Having a 60 mm Thickness Polyurethane foam Insulation (Density 40 Kg)Injected by Machine. To Maintain Chilled Milk at Temp 4°C AEPL 1KL BMC Deigned by Special Construction, which allows them to Chilled milk 20 times faster. BMC have a 01 Nos Agitator with the RPM30- 32, to ensures the milk is the same temperature throughout the Day and prevents warm milk in the middle.
| Temperature control | Digital temperature controller, advanced digital Technology to Control & Maintain temperature |
| Cooling | Faster cooling due to direct expansion, energy efficient condensing unit |
| Tank | Durable, AISI-304 S.S. Tanks with insulation |
| Electricity | Reduced electricity consumption |
| Protection | Inbuilt anti-freezing protection system |
| Microprocessor | Maintains temperature |
| Agitator | Continuously rotates milk to maintain a uniform state |
| Maintenance | User-friendly, low maintenance |
| Rated capacity | 1000 liters |
| Gross capacity | 1000 liters |
| Construction of Tank | AISI SS 304 |
| Tank Orientation | Open Type in D Shape Horizontal, Open Type Round / Vertical |
| Tank Evaporator | Omega Make Laser welded with Operating pressure of 30 bars and crash test pressure of 60 bars. |
| Inner thickness | 2 mm AISI SS 304 |
| Outer thickness | 1.5 mm AISI 304 |
| Milk measuring facility | Inside Wall Mounted Dip stick &Calibration accuracy- 0.5%. Laminated & Framed calibration chart. |
| Agitators | 01 Nos to Maintain Milk Temp & Compliance ensuring even distribution of the milk fat. |
| Type of Insulation | 60 mm thkInjected, CFC Free PUF 40kg/Cu. m. with the 0.019 Wm/k |
| Type of Insulation | 60 mm thkInjected, CFC Free PUF 40kg/Cu. m. with the 0.019 Wm/k |
| CIP Facility | Rotary Spray Ball 01 Nos for Inside Complete Cleaning |
| Open Cover | For Open Type BMC 02 Nos Left Right Hydraulic Hinges Cover |
| Ball Fit | Adjustable 50 mm Height Solid Ball Fit to Leveling the Tank |
| Temperature Sensor | Sub Zero |
| Inlet | Manual or No Foam Inlet with Expandable Union |
| Pipe Line & Accessories | SS 304 Dairy Standard Union, NRV, 3 Way Valves etc. to Smooth Milk Loading Unloading Process in BMC. |
| Servo Stabilizer | - 10 KVA – 1 Phase |
| D.G Set Require | 10 KVA (Optional on Demand)– 1 Phase |
Standard Applicable Cooling Time -First milking cycle (appx 50% to 60% of rated capacity of BMC tank) Cooling in less than 3 hours from 35C to 4°C- Second milking cycle (appx. 40% to 50% of rated capacity of BMC tank) cooling in 1hour 30 minutes (average temp 19.5 C to4°C)
Authoritative technical answers regarding capacity sizing, food-grade sanitary construction, Clean-In-Place (CIP) cleaning, and dairy plant integration from Aviva Equipments engineers.
Our bulk milk cooler 1000 ltr features an open-top cylindrical or rectangular design with 1,100L gross capacity, a 3 HP hermetic scroll condensing unit, a laser-welded bottom dimple evaporator, and a 30 RPM geared motor agitator.
Aviva uses state-of-the-art laser-welded pillow plate technology rated for 30 bar working pressure and crash tested up to 60 bar. This ensures direct, rapid refrigerant expansion directly beneath the milk pool with zero hot spots.
The dual split covers open fully to give complete visual access. Operators can rinse with lukewarm water, wash with food-grade alkaline detergent using soft non-abrasive pads, and perform a final sanitary rinse with rapid drainage via the 38mm SS butterfly valve.
Each cooler comes with an electropolished stainless steel dipstick calibrated to 0.5% accuracy, accompanied by a laminated, government-stamped volumetric calibration chart.
Aviva Equipments is a leading bulk milk cooler manufacturer in india trusted by state dairy federations and private dairies for robust engineering, low power consumption, and pan-India service support.
Consult with Aviva Equipments engineering team for custom capacity sizing, P&ID layout drawings, and factory-direct pricing tailored to your plant.
